Investigation of Construction and Working of Elementary Generator (AC and DC)

 Title:

Investigation of Construction and Working of Elementary Generator (AC and DC)

Objectives:

Ø Understand the basic concept of generator

Ø Construction and assembly of Elementary Generator

Ø Verify generator output waveforms (AC and DC)

Introduction:

DC Generator

A DC generator is an electrical machine whose primary capacity is to change over mechanical energy into power. At the point when conductor slices attractive transition, an emf will be produced dependent on the electromagnetic enlistment guideline of Faraday's Laws. This electromotive power can cause a progression of current when the conductor circuit is shut.

Parts of DC generator

A DC generator can likewise be utilized as a DC engine without changing its development. Thusly, a DC engine, in any case a DC generator can be by and large called a DC machine. Beneath we have referenced the fundamental pieces of a DC Generator.



Stator

The primary capacity of the stator is to give attractive fields where the loop turns. A stator incorporates two magnets with inverse extremity confronting one another. These magnets are situated to fit in the locale of the rotor.

Rotor

A rotor in a DC machine incorporates opened iron covers with openings that are stacked to shape a round and hollow armature center. The capacity of the cover is to diminish the misfortune caused because of whirlpool current.

Armature Windings

Armature windings are in a shut circuit structure and are associated in arrangement to resemble for improving the amount of delivered current.

Burden

The outer design of the DC generator is known as Yoke. It is made of either cast iron or steel. It gives fundamental mechanical capacity to helping the attractive transition given through the shafts.

Shafts

The capacity of a shaft is to hold the field windings. These windings are twisted on posts and are either associated in arrangement or equal by the armature windings.

Shaft Shoe

Post shoe is for the most part used for spreading the attractive transition to dodge the field loop from falling.

Commutator

A commutator works like a rectifier that changes AC voltage to DC voltage inside the armature winding. It is planned with a copper portion, and each copper fragment is shielded from one another with the assistance of mica sheets. It is situated on the shaft of the machine.

Brushes

The electrical associations can be guaranteed between the commutator just as the outside load circuit with the assistance of brushes.



Working DC Generator:

As per Faraday's laws of electromagnetic acceptance: at whatever point a conductor is put in an attractive field or a conductor is moved in an attractive field an emf gets initiated in the conductor. The instigated emf can be determined from the emf condition of dc generator. In the event that the conductor is given a shut way, the prompted current will course inside the way. In a DC generator, field curls produce an electromagnetic field and the armature conductors are pivoted into the field. In this way, an electromagnetically prompted emf is created in the armature conductors. The course of actuated current is given by Fleming's correct hand rule.



Losses in DC Generator

In a DC machine, the information power is completely not changed into the yield power. Some piece of info power gets squandered in different structures. In a DC machine, the misfortunes are comprehensively grouped into four kinds as:

Ø Copper Loss

Copper misfortune happens when the current moves through the winding. These misfortunes happen because of the obstruction in the winding. The copper misfortune is ordered into three structures as armature misfortune, the field winding misfortune and brush contact obstruction misfortune.

Ø Center Losses or Iron Losses

A few misfortunes in the iron center happen when the armature turns in the attractive field. These misfortunes are known as center misfortunes. These misfortunes are ordered into two misfortunes as Hysteresis misfortune and Eddy current misfortune.

Applications of DC generators

Ø The independently energized type DC generators are utilized for force and lighting purposes.

Ø The arrangement DC generator is utilized in curve lights for lighting, stable current generator and supporter.

Ø DC generators are utilized to repay the voltage drop inside Feeders.

Ø DC generators are utilized to give a force supply to inns, lodges, offices, and so forth

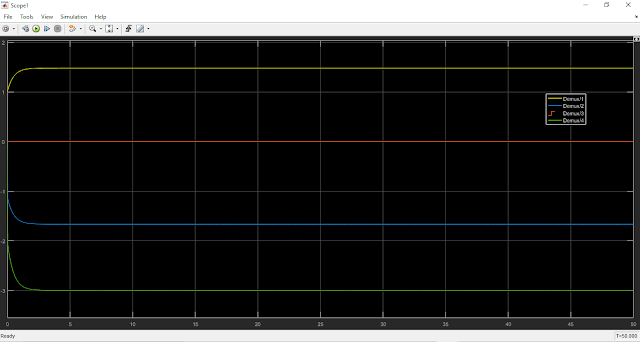

Draw the PMDC Generator on Mat-lab with Waveform:





Draw Another way PMDC Generator on Mat-Lab with Waveform:
